Reviewed

NDS Baitboat with Integrated Sonar

In stock eTackle score 8.2/10
Lowest in-stock price
£1,198.99 from Total Fishing Tackle
Compared across 2 shops, with 2 currently in stock
Buy Now Watch Price

5 Things To Know

  1. Its bait compartment carries up to 4 kg of bait in a compact body.
  2. Control reaches 200–300 m depending on environmental conditions, with five saved locations on the handset.
  3. Two eight-cell battery packs provide up to 2.5 hours of use or 9 km travel.
  4. With its battery fitted the boat weighs 5 kg and measures 550 × 370 × 230 mm.
  5. Triple-beam sonar works through the NDS Fish Finder App, with GPS navigation and 3D mapping functions.

Product Information

The NDS Baitboat with Integrated Sonar is a camo bait boat for modern carp anglers who want GPS navigation, sonar and controlled bait delivery. Its bait compartment holds up to 4 kg, while the compact boat weighs 5 kg including its battery and measures 550 × 370 × 230 mm.

An integrated weedless propeller system is built to resist snags from aquatic vegetation and debris, and brushless motors give the boat a 0.9 m/s top speed.

The NDS Fish Finder App provides sonar display, mapping and automatic area scanning, while triple-beam sonar uses high, mid and low frequencies for depth coverage.

The ergonomic handset gives one-handed control over an environment-dependent 200–300 m range, with five favourite locations assignable for instant return. Dual eight-cell battery packs provide up to 2.5 hours of use or 9 km of travel, and the boat comes with a hard travel case.

NDS Baitboat with Integrated Sonar Review

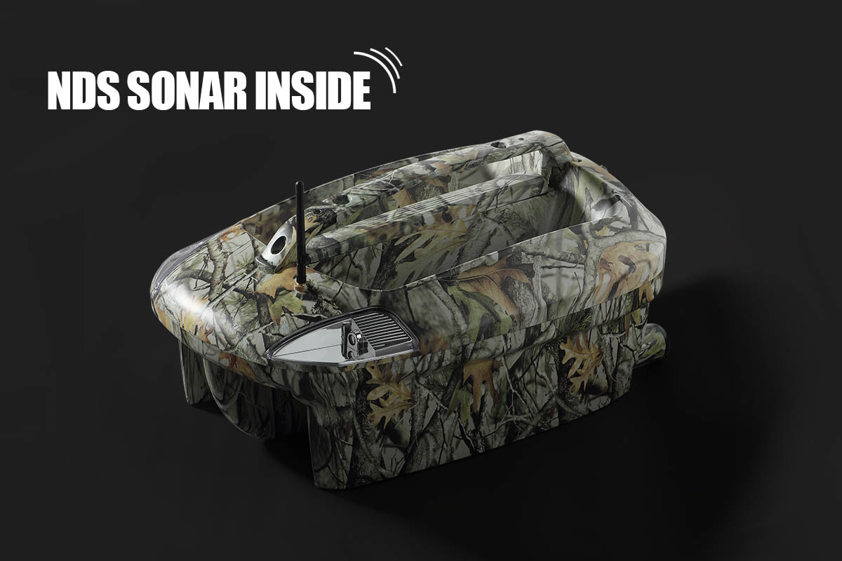

The NDS Baitboat with Integrated Sonar is a camo bait boat with triple-beam sonar built in, so you can read the depth and the lake bed on your phone through the NDS Fish Finder App while you're baiting up. It has built-in GPS for saving spots and coming back home, brushless motors, an integrated weedless propeller system and room for up to 4kg of bait.

It sits between the cheaper NDS Baitboat Camo and the big-name sonar boats, and for me the catch is the automation. Autopilot is a separate unlock, and the range and top speed are modest for the money, so I think it suits anglers who mainly want sonar and a big hopper rather than a boat that drives itself.

Build quality 8.0/10
Features Rating 9.0/10
Performance & Handling 8.0/10
Value for money 7.8/10

How well is it built?

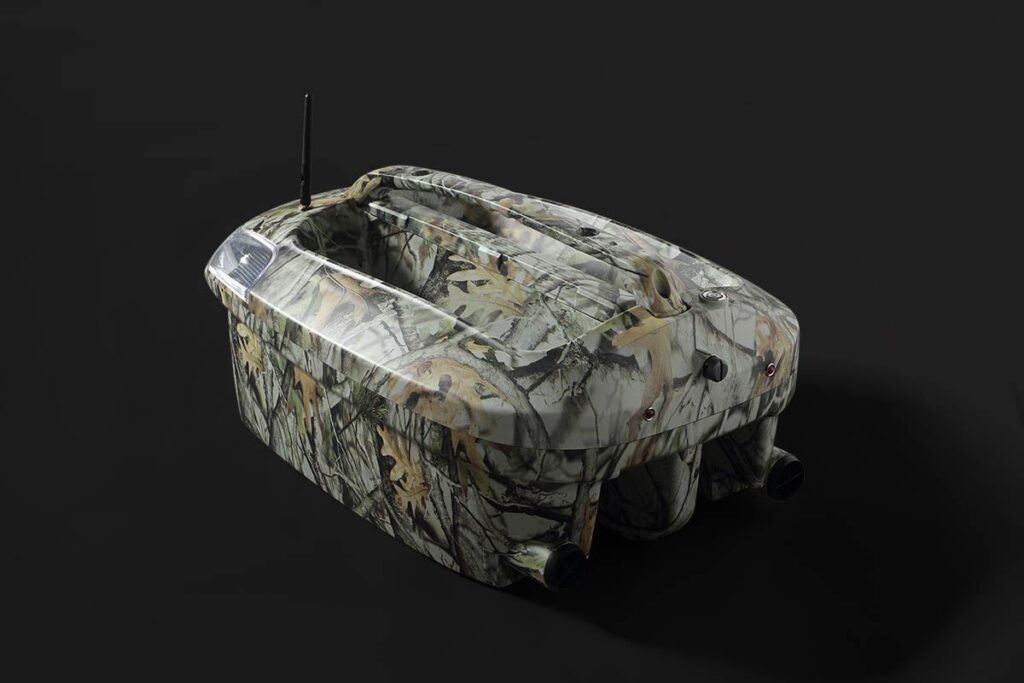

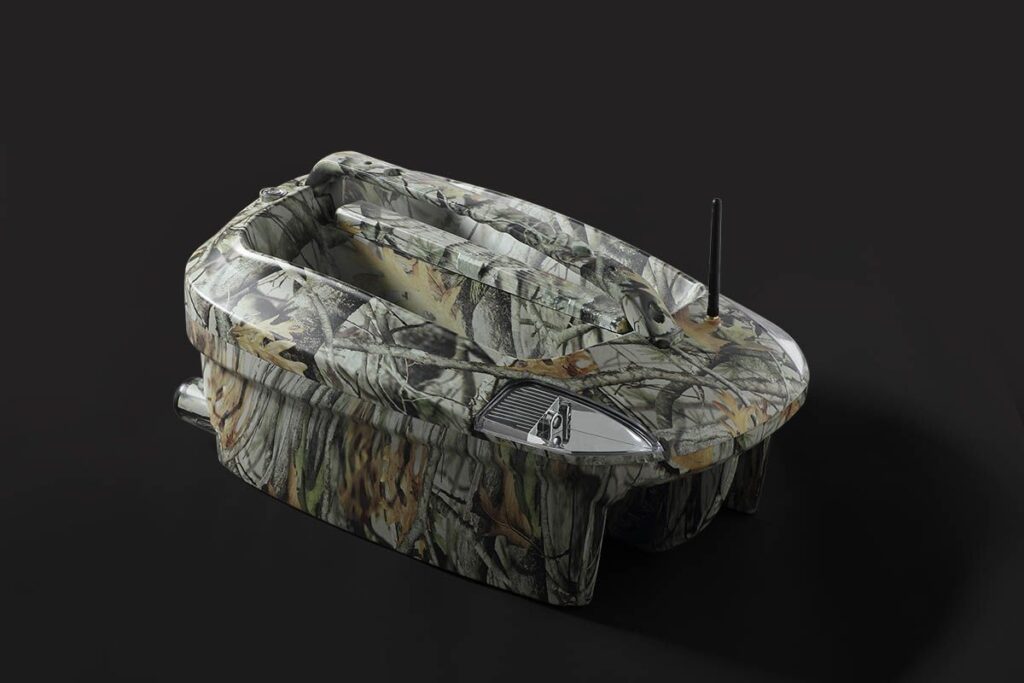

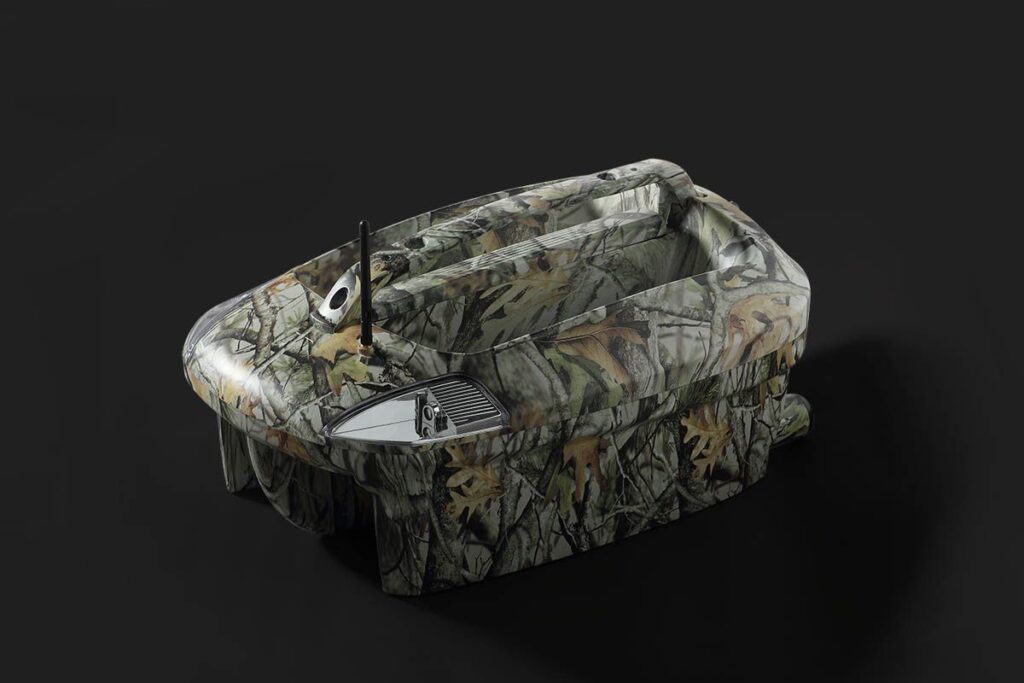

NDS have gone for a full camo finish on the hull, and from above you can see the big central bait well with a bar running down the middle and a clear light housing on each front corner.

It's a tidy, rounded shape, and I like that the propellers are part of an integrated weedless system built to resist snags from weed and debris.

The motors are brushless, which I'd always want on a boat at this level because they run smoothly and there's less to wear out. There are two LEDs at the front and two at the rear, so it's easy to follow in low light.

It comes in a hard travel case, which is the right way to carry a boat with sonar built in, and two battery packs are in the box.

For me it looks like a sensible, well thought out platform, but I don't think it's built to the standard of the Toslon X or the Deeper Quest, and the score reflects that.

NDS Baitboat with Integrated Sonar

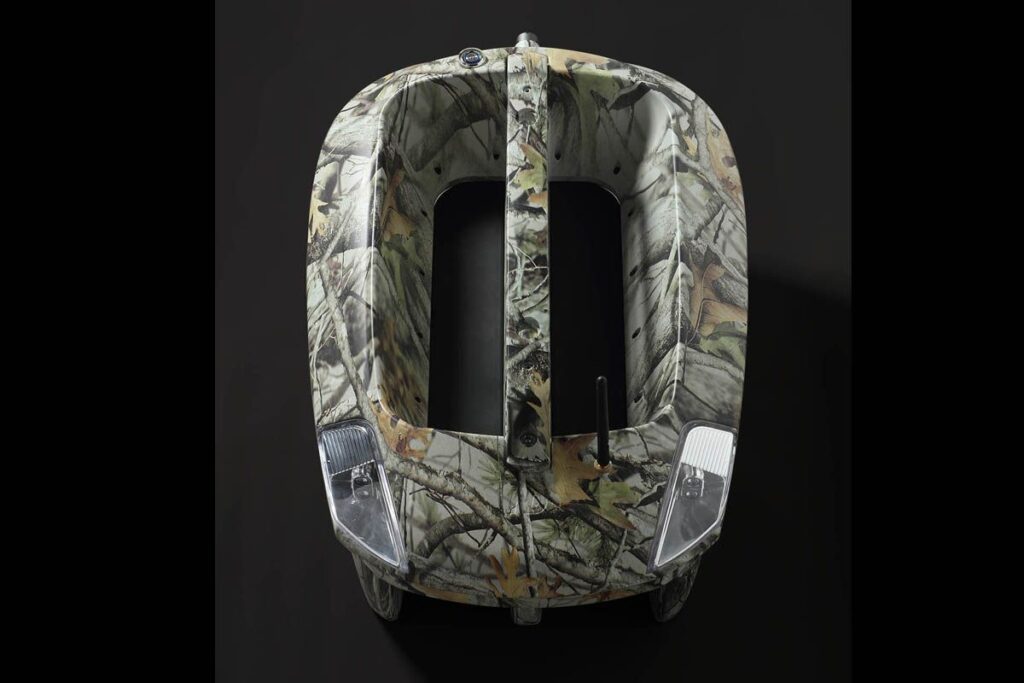

The camo hull from above, with the bait well and front lights

What are the features like?

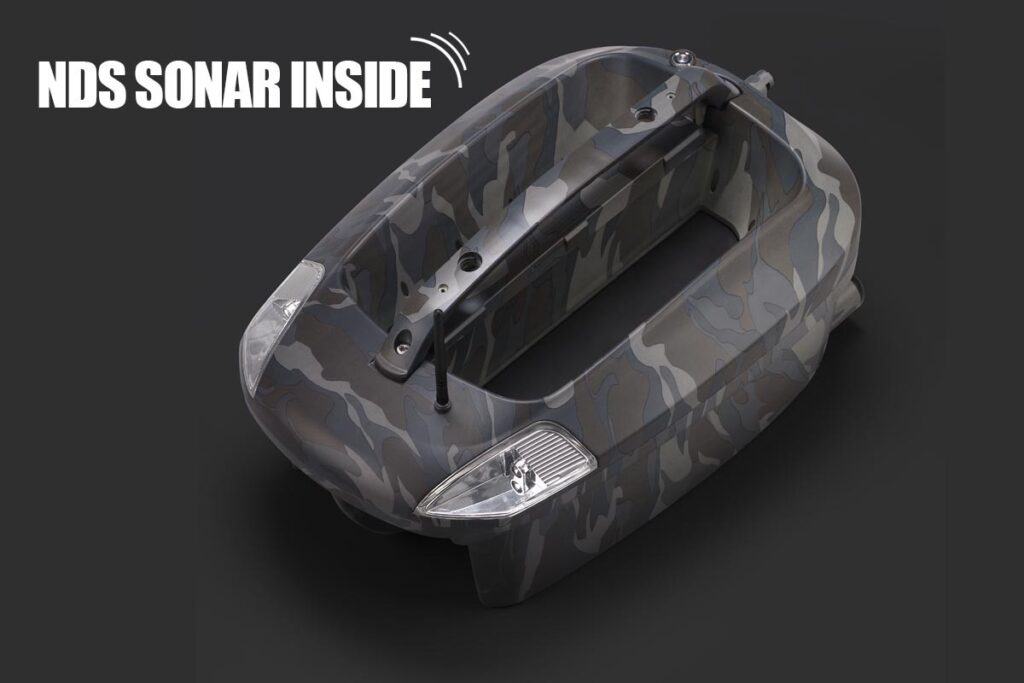

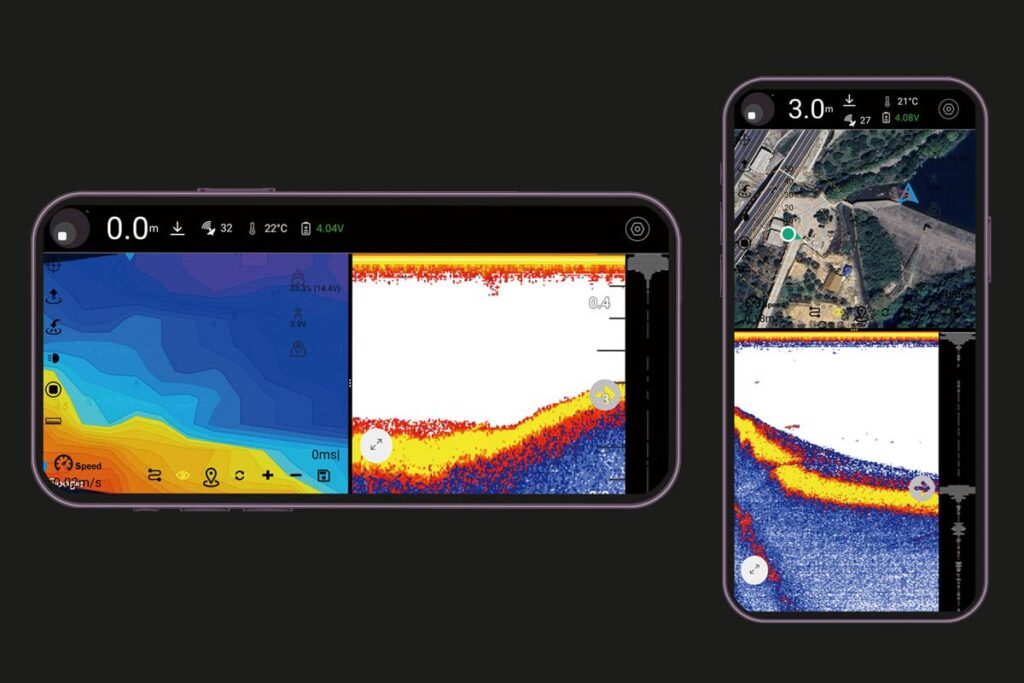

This is where the NDS earns its place. The triple-beam sonar runs at 680kHz, 200kHz and 100kHz, giving you a high, mid and low frequency beam for detail and depth coverage, and it all shows up in the NDS Fish Finder App alongside mapping and automatic area scanning.

That's a proper set of tools for finding gravel, silt and drop-offs before you bait.

The GPS module saves your spots and has a return-home function, and you can put five favourite locations on the handset for one-touch return. Action Groups, unlocked through the app, let you string up to 20 commands into one sequence.

The snag is that autopilot is sold separately as an unlock, and on a boat at this price I'd expect it included. The Rippton CatchX Max gives you autopilot as standard, so you need to factor that in when you compare them.

NDS Baitboat with Integrated Sonar

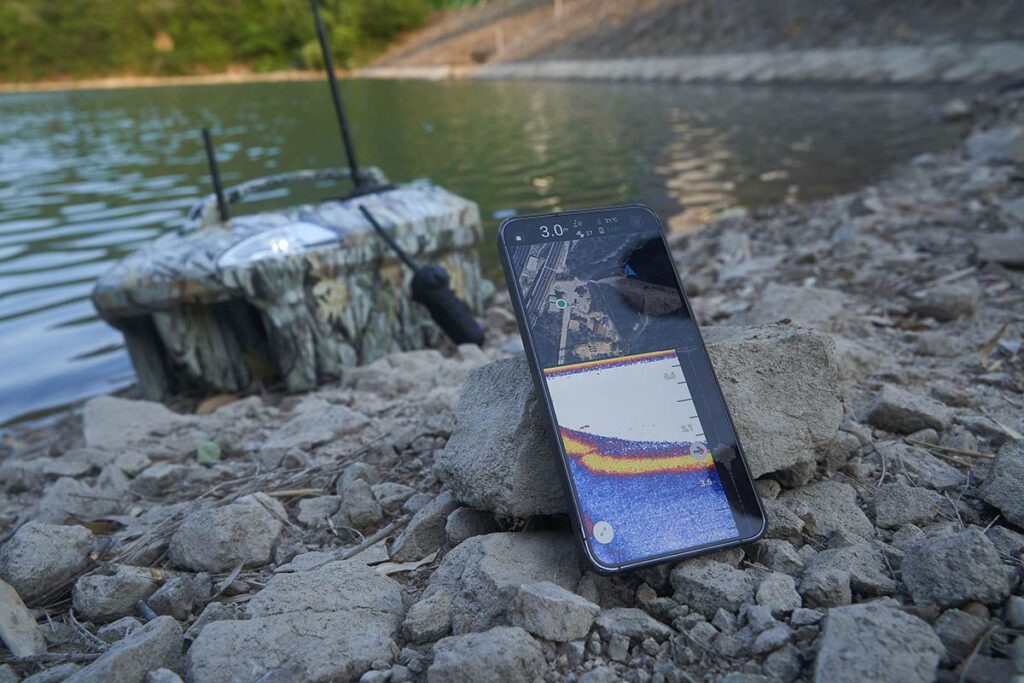

The map and sonar display on a phone beside the boat

Performance & Handling

On paper the NDS is built to carry a lot rather than go fast. Up to 4kg of bait is a big load, and it's double what the NDS Baitboat Camo carries, so you can put a decent bed of bait out in one run.

The flip side is the pace and the range, because the brushless motors give it a 0.9 m/s top speed and the control range is 200 to 300 metres depending on conditions, which is shorter than the Rippton CatchX Max or the Deeper Quest.

For most day ticket lakes that's plenty, but on a big pit I'd want more in hand.

Two eight-cell battery packs give up to 2.5 hours or 9km of running, which should cover a session's baiting if you're sensible with it. The one-handed handset and the weedless propellers are both pluses when you're steering it into weedy margins or along a tree line.

Is it good value for money?

The NDS sits just under the Rippton CatchX Max on price and well below the Toslon X and the Deeper Quest, so it's one of the cheaper ways to get sonar, GPS and a 4kg hopper in one boat.

You also get two battery packs, the handset, a USB charger with a UK and EU adapter, a USB-C cable and the hard case, so the only extra is the autopilot unlock if you want it.

That unlock is what holds the score back for me, along with the modest range and speed. The Rippton CatchX Max gives you more features for a little more money.

It suits carp anglers who want to find features with sonar and bait heavily in one run, fish lakes where 200 to 300 metres is enough, and are happy to pay extra later if they want the boat to drive itself.

Pros

  • Triple-beam sonar at 680, 200 and 100kHz built into the boat
  • Up to 4kg of bait for a full bed in one run
  • NDS Fish Finder App adds mapping and automatic area scanning
  • Five favourite spots on the handset for one-touch return
  • Hard case, two battery packs and charger all in the box

Cons

  • Autopilot is a separate unlock rather than included as standard
  • 200 to 300m range and 0.9 m/s are modest for the price

Features and Specifications

Feature Details
Bait capacity Up to 4 kg
Control range 200–300 m, environment-dependent
Battery runtime Up to 2.5 hours
Travel distance Up to 9 km
Weight 5 kg including battery
Dimensions 550 × 370 × 230 mm
Battery packs Two 8-cell battery packs
Sonar Triple-beam 680 kHz, 200 kHz and 100 kHz sonar
GPS module Saves spots, auto-drive and return-home functions; Autopilot unlock sold separately
Action Groups Up to 20 commands per sequence, unlocked through the app
Propellers Integrated weedless propeller system
Lighting Two front LEDs and two rear LEDs
Remote handset Ergonomic one-handed control with five favourite-location returns
In the box Boat, two battery packs, handset, USB charger, UK/EU adapter, USB-C cable and hard case

How It Compares

See how the NDS Baitboat with Integrated Sonar compares with other bait boats with sonar on overall score and current price.

Name Price Overall Rating
NDS Baitboat with Integrated Sonar £1,198.99 8.2
Toslon X Bait Boat £1,799.99 9.3
Deeper Quest Bait Boat £1,848.00 8.8
Rippton CatchX Max Bait Boat with GPS and Sonar £1,239.99 8.5
RidgeMonkey Hunter 3000 Bait Boat £799.99 8.2
Angling Technics Microcat HD Bait Boat £949.99 8.1
Saber Hydra Bait Boat GPS £549.99 8.1
Boatman Actor MK4i Compass Bait Boat £259.99 7.8
NDS Baitboat Camo £648.99 7.8
£1198.99best price today at Total Fishing Tackle
Today's best price£1198.99at Total Fishing Tackle
Lowest since 12 September£1198.99Same as today
Highest since 12 September£1199.00at eBay on 12 September 2026

Get an email when the price drops

We'll email you when the price drops. Confirm your email once, then watch other products on this device with one click.

Frequently Asked Questions

How much bait can this boat carry?

The bait compartment holds up to 4 kg of bait.

What control range does the NDS Baitboat have?

Its control range is 200–300 m and depends on environmental conditions.

How long will this boat run from its batteries?

The supplied dual 8-cell packs provide up to 2.5 hours of use or 9 km of travel.

Does this boat have GPS and sonar?

It has a built-in GPS module and triple-beam sonar. The NDS Fish Finder App supports sonar display, mapping and GPS navigation.

What comes with the NDS Baitboat?

It includes two battery packs, a remote handset, USB charger, UK/EU wall adapter, USB-C cable and a hard travel case.
