Humminbird Piranha MAX 4 DI Fishfinder
Product Information
The Humminbird Piranha MAX 4 DI combines Down Imaging and Dual Beam Sonar to show fish, structure and contours beneath the boat. Its redesigned keypad interface also includes Fish ID+, fish alarms, depth alarms and zoom.

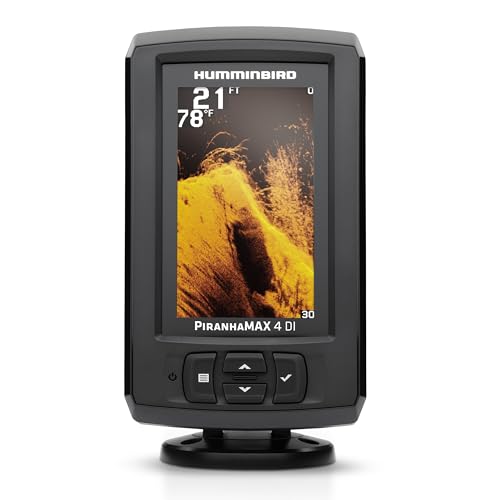

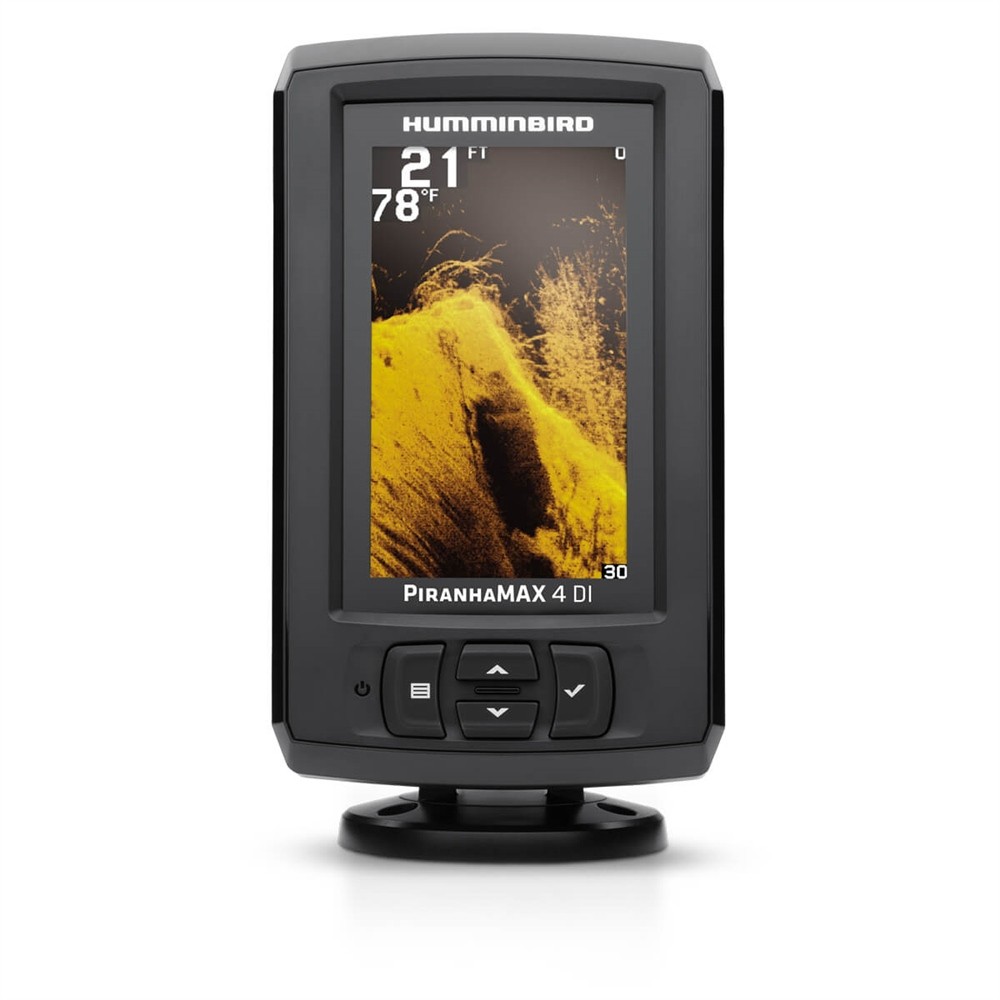

The 4.3-inch 256-colour LCD uses a 272H x 480V pixel matrix. Down Imaging shows underwater structure including timber, brush, bridge pilings and rocks, while the dual-beam system provides narrow and wide beam coverage.

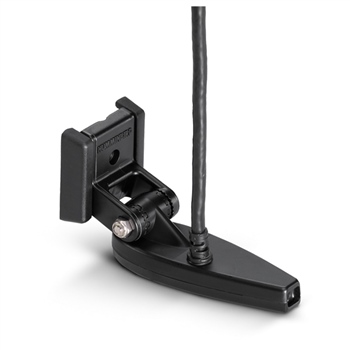

It supports 200 and 455 kHz sonar frequencies, with sonar depths of 600ft at 200 kHz and 320ft at 455 kHz. The supplied XNT 9 DI T transducer mounts on the transom, and the gimbal mount tilts and swivels.
Features and Specifications
| Feature | Details |
|---|---|
| Display | 4.3-inch 256-colour LCD, 272H x 480V pixel matrix |
| Sonar frequencies | 200/455 kHz |
| Sonar depth | 600ft at 200 kHz, 320ft at 455 kHz |
| Down Imaging depth | 320ft |
| Sonar coverage | 28°, 16° and 74° at -10dB |
| Sonar types | Down Imaging and Dual Beam Sonar |
| Controls | Keypad control with Fish ID+, fish alarms, depth alarms and zoom |
| Power | 10.8-20 VDC input, 180mA draw, 2,400W peak-to-peak and 300W RMS |
| Mount | Gimbal mount with tilt and swivel adjustment |
| Transducer | XNT 9 DI T transom-mounted transducer included |
Useful Information
Price History
Tracked shop prices over time.
Get a Price Drop Email
Confirm your email once, then watch other products on this device with one click.
Frequently Asked Questions
What screen does the Humminbird Piranha MAX 4 DI have?
It has a 4.3-inch 256-colour LCD with a 272H x 480V pixel matrix.
How deep can the Humminbird Piranha MAX 4 DI read?
Sonar reads to 600ft at 200 kHz and 320ft at 455 kHz. Down Imaging reads to 320ft.
Does the Humminbird Piranha MAX 4 DI include a transducer?
The XNT 9 DI T transom-mounted transducer is included.
What sonar types does the Humminbird Piranha MAX 4 DI use?
It uses Down Imaging and Dual Beam Sonar.
Does the Humminbird Piranha MAX 4 DI have GPS?
GPS chartplotting and GPS trackplotting are not supported.
